Den Övergång från analoga till digitala RF-mottagare
Den Övergång från analoga till digitala RF-mottagare
The transition from analogue to digital RF receivers marks a significant shift in communications intelligence (COMINT) applications, where high-performance signal processing, wideband acquisition, and real-time analysis are critical. Traditional analogue RF receivers rely on hardware-based processing, limiting flexibility, scalability, and adaptability. Digital RF receivers, driven by advancements in software-defined radio (SDR) and digital signal processing (DSP), offer superior performance, enhanced accuracy, and dynamic reconfiguration.
Novator Solutions HUGIN 4000 is a high-performance RF receiver designed for digital signal processing applications and capable of replacing thousands of radios with a single system.
The Transition to Digital RF Receivers for COMINT
Analogue RF receivers operate with fixed hardware components such as mixers, filters, and amplifiers, making it difficult to adapt to new signal environments. Their reliance on analogue filtering and demodulation restricts precision and adaptability, while sensitivity to noise and interference further limits their effectiveness. In contrast, digital RF receivers utilise software-defined processing, replacing traditional analogue circuits with reconfigurable functions. This allows for advanced filtering, demodulation, and the ability to process multiple signals simultaneously across a wide frequency range. The integration of AI and machine learning further enhances digital RF receivers, enabling functions like automated signal classification and noise reduction in COMINT operations.
SDR technology replaces traditional receiver hardware, allowing greater flexibility and on-the-fly reconfigurability of systems – both remotely and in the location of the radio. Field-Programmable Gate Arrays (FPGAs) and DSPs efficiently handle signal decoding and modulation, and processed signals may be handed off to AI-driven algorithms, for example, to optimize performance and automate interference detection. These advancements make digital RF receivers indispensable for modern COMINT applications, where the ability to quickly identify and analyse signals is crucial.
How Novator Solutions HUGIN 4000 Supports COMINT Requirements

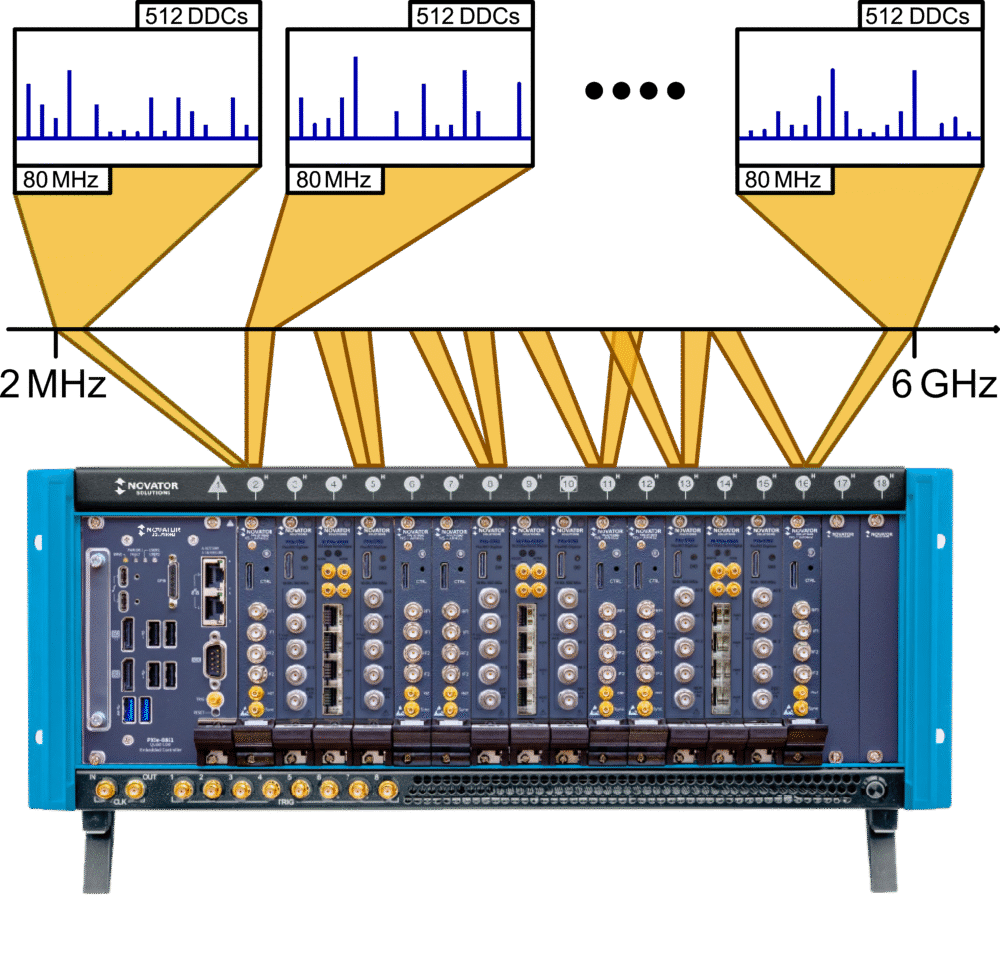

HUGIN 4000 is a cutting-edge digital RF receiver tailored for COMINT applications. It covers a 2 MHz to 6 GHz frequency range, ensuring compatibility with a wide variety of communications signals. Up to 12 tuners, with 80 MHz bandwidth each, provide an aggregated bandwidth up to 960 MHz, which can either be contiguous or set to multiple centre frequencies.
HUGIN 4000 uses a purpose-built digital receiver module to ensure clarity with low phase noise and high dynamic range. Its fully software-defined architecture allows for remote updates and reconfiguration, making it highly adaptable to emerging threats and new signal environments. The TCP/IP API for HUGIN 4000 allows it to integrate with existing COMINT networks and provides interoperability with many operator software options, including Combitech SANDRA and Procitec go2signals. For more information visit the whitepaper “Building a complete COMINT monitoring system”.
HUGIN 4000 features onboard FPGA processing, minimising latency in signal detection and classification. This capability supports real-time demodulation of multiple modulation schemes, including AM, FM, LSB and USB, ensuring that a wide variety of signal types can be intercepted and analysed. These signals can be subsequently handed off for host-based processing with tools for human language processing, decoding, or even AI-enabled signal classification. Additionally, raw I/Q may be streamed to the host for digital demodulation.
A key feature of HUGIN 4000 is the ability to configure up to 6144 digital drop receivers, allowing simultaneous signal monitoring across a vast number of channels. This high-capacity functionality enables the replacement of thousands of traditional analogue radios, significantly reducing hardware footprint and operational costs. The ability to monitor and analyse multiple signals in real time ensures that intelligence agencies and defence organizations can build broader and more accurate situational awareness.
Applications in COMINT and Beyond
HUGIN 4000 plays a critical role in the modernization of COMINT by providing wideband, high-speed and reconfigurable capabilities that address the evolving demands of intelligence operations. It enhances electronic warfare (EW) capabilities by enabling real-time wideband surveillance and detection of adversarial communications. In spectrum monitoring, the HUGIN 4000 allows regulatory bodies to detect unauthorized transmissions and manage frequency congestion.
Slutsats
The move from analogue to digital RF receivers is essential for modernizing COMINT and related intelligence operations. Digital technologies such as SDR, AI-driven processing and FPGA acceleration offer unmatched flexibility and efficiency in signal interception, classification, and analysis. Novator Solutions’ HUGIN 4000 is at the forefront of this transition, providing high-speed, wideband and software-defined capabilities that empower defence and intelligence organizations to stay ahead in an increasingly complex signal environment. By enabling real-time, multi-channel monitoring and advanced signal processing, HUGIN 4000 ensures that COMINT operations remain agile, precise, and effective.
