RXDF3104
Mobil övervakningsmottagare och riktningsvisare
RXDF3104 is Novator Solutions’ next-generation mobile C-ESM (communications electronic support measures) system. It introduces a new direction-finding subsystem, enhanced positioning accuracy and expanded signal interception capabilities. Designed for mobile and deployable operations, the system enables detection, direction finding, monitoring and analysis of RF signals across a wide frequency range. RXDF3104 supports both rapid tactical response and detailed communications intelligence missions within a compact and ruggedised platform.
Viktiga fakta
- Wideband DF coverage from 20 MHz to 6 GHz
- High-speed spectrum scanning with the new Stitch Search function
- Simultaneous DF, scanning, monitoring and recording
- Up to 64 simultaneous narrowband channels
- Integrated high-accuracy GNSS/INS positioning and heading
- Compact, ruggedised design with IP43 protection
- Intuitiv programvara för kommando- och kontrollfunktioner
- RXDF 3104 in Brief
- Funktioner och fördelar
- Tillämpningar
- Resurser
- Relaterade produkter

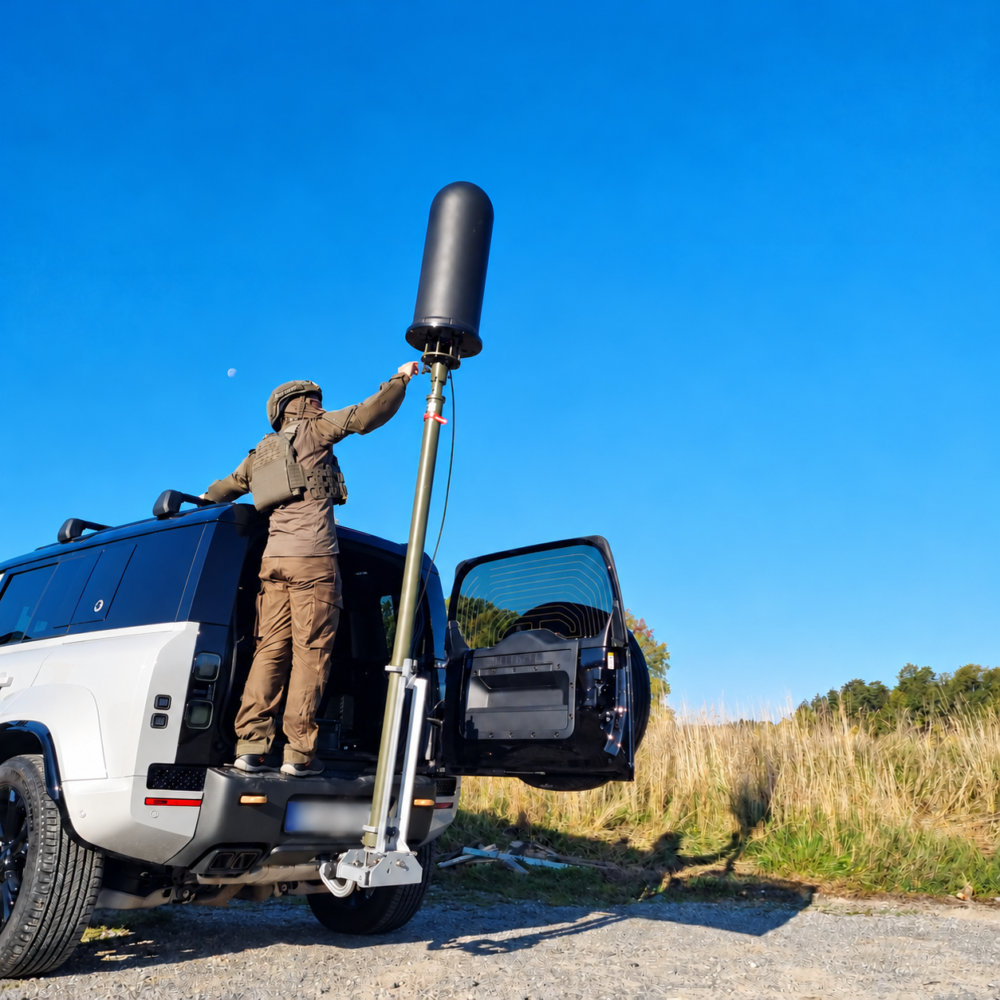

RXDF3104 is an out-of-the-box solution for on-the-move operations. The system is optimised for quick deployment in any manned or unmanned vehicle with minimal preparation. It comes with temporary mountable antennas, a main processing unit that can be placed in the hatchback of a vehicle, and an intuitive user interface and control software installed on a rugged laptop.
64 övervaknings- och inspelningskanaler
RXDF3104 enables operators to monitor and record up to 64 clear voice interceptions simultaneously. All digital drop receivers (DDRs) can be configured in real-time. Settings including centre frequency, bandwidth, demodulation and AGC mode are controlled individually per DDR.
Automatisk pejling
RXDF3104 automatically calculates and records line of bearings (LOBs) of all assigned channels. RXDF3104 plots the position of the system, plus lines of bearing to each intercepted emitter on a map. Real-time, recorded and played-back bearings are separated into discrete layers, allowing them to be view individually or together. By connecting multiple systems to an external network, cross-bearing triangulation of emitter
positions may be performed.
Intuitive Command-and-Control (C2) Software
The intuitive C2 software provides operators with a 360-degree situational awareness overview, supporting rapid, on-the-spot decision making. Operators manage the spectrum and assign the digital drop receivers (DDR) via a single laptop screen. All recorded voice channels can be played back in near real-time.
Mobila applikationer

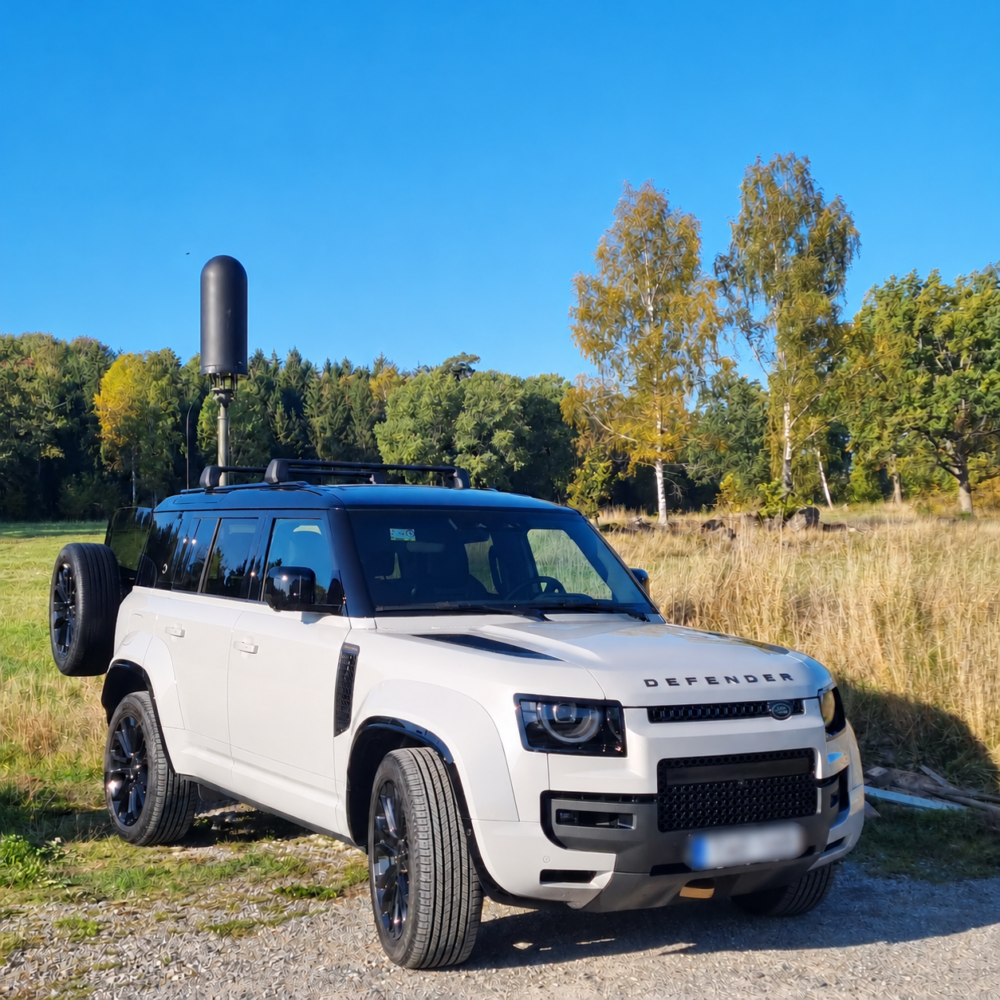

The DC-powered tactical system is IP 43 rated and is prepared for easy transportation. It has been designed for use in any manned or unmanned collection asset that allows temporary mounting of the antennas.
EW och signalspaning
Den överbelastade elektromagnetiska miljön kräver taktiska elektroniska stödåtgärder för kommunikation (C-ESM) för att hantera samtidig insamling av många kanaler parallellt och för att bestämma sändarnas position.
Gränskontroll
Eftersom push-to-talk-radioapparater ofta används i olaglig verksamhet, t.ex. smuggling eller otillåtna gränspassager, måste gränsbevakningen och gränsstyrkorna ha band som täcker alla vanliga kommunikationskanaler.
Sökning och räddning
With RXDF3104, commonly used communication channels may be monitored alongside international distress frequencies such as 121.5 MHz and 243 MHz, beacons transmitting on Cospas-Sarsat, or sonobuoys at 136 to 174 MHz.
